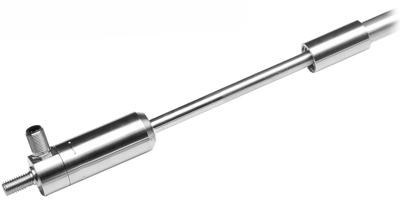

MXR Analog Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to VA, United States
The MH-Series Model MXR sensor is available in two versions.

The MXRC and the MXRS. Although the two versions are similar in both appearance and performance, there are unique features distinguishing the two sensors from one another.

The MXRC is available in four discrete stroke lengths up to 250 mm, while the MXRS is available in stroke lengths up to 600 mm (50 mm ordering increments).

The MXRC works with a 5 Vdc operating voltage, and provides a voltage output that is ratiometric to the operating voltage. The MXRS can work with an operating voltage of either 12 or 24 Vdc, and has multiple Analog output options available.
show more
The MH-Series Model MXR sensor is available in two versions.

The MXRC and the MXRS. Although the two versions are similar in both appearance and performance, there are unique features distinguishing the two sensors from one another.

The MXRC is available in four discrete stroke lengths up to 250 mm, while the MXRS is available in stroke lengths up to 600 mm (50 mm ordering increments).

The MXRC works with a 5 Vdc operating voltage, and provides a voltage output that is ratiometric to the operating voltage. The MXRS can work with an operating voltage of either 12 or 24 Vdc, and has multiple Analog output options available.

Specifications

Approvals & Certifications

  • ISO 14982 100 V/m (Radiated Immunity)
  • EMC Emmissions: EN 61000-6-4 Immunity: EN 61000-6-2

Consumption

  • Current Consumption MXRS: Typical ≤ 80 mA (12 Vdc)
  • Current Consumption: Typical ≤ 40 mA (5, 24 Vdc)

Electrical Connectors

  • M12 Male

Electrical Protection

  • Overvoltage Protection: MXRS up to 36 Vdc, MXRC up to 20 Vdc
  • Polarity Protection MXRS: up to -36 Vdc

Enclosure, Body Material

  • Sensor Electronics: AISI 303 Stainless Steel 1.4305

Environmental Protection

  • Ingress Protection: IP69K with M12 Approved Connector

Humidity

  • 90 % Relative Humidity, Non-Condensing

Hysteresis

  • ± 0.1 mm

Isolation

  • Electrical Isolation: 500 Vdc (DC Ground to Machine Ground)

Length

  • Stroke Length: 3.9 to 19.6” (100 to 500 mm) - MXRS
  • Stroke Length: 4.3 to 9.8” (109.5 to 250.1 mm) - MXRC

Linearity

  • < ± 0.04 % of Full Scale - MXRS
  • ± 0.3 mm - MXRC

Materials of Construction

  • Sensor Rod with Flange: AISI 304L Stainless Steel 1.4306

Mounting

  • Ball Joint
  • Spherical Rod End
  • Threaded M10 x 1.5 Stud

Operating Temperature

  • -40° to 105° C (-40° to 221° F) - MXRS
  • -40° to 75° C (-40° to 167° F) - MXRC

Operating Voltages

  • 12-24 Vdc (8-32 Vdc) - MXRS
  • 5 Vdc (4.75-5.5 Vdc) - MXRC

Output

  • 0.1-4.9 Vdc at 5 Vdc Supply, Output Ratiometric with V Supply - MXRC
  • 0.25 to 4.75 Vdc to MXRS
  • 0.5 - 4.5 Vdc - MXRS
  • 4-20 mA - MXRS

Repeatability

  • < ± 0.1 mm

Resolution

  • ± 0.1 mm

Shock

  • 100 G (Single Hit) / IEC Standard 68-2-27 (Survivability) - MXRS
  • 5 G (Single Hit) / IEC Standard 68-2-27 (Survivability) - MXRC

Storage Temperature

  • -20° to 85° C (-4° to 185° F) - MXRC
  • -30° to 105° C (-22° to 221° F) - MXRS

Vibration

  • 1 G, 10 to 150 Hz / IEC Standard 68-2-6 - MXRC
  • 15 G (10 to 2,000 Hz) IEC Standard 68-2-6 - MXRS

Applications

  • Hydraulic Applications
