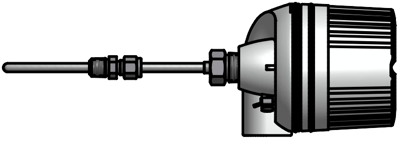

Fixed-Sheath RTD Assemblies with Explosion-Proof Connection Head

Brand: Pyromation
Does not ship to United States
Fixed-Sheath RTD Assemblies with Explosion-Proof Connection Heads are provided with head mounting fittings that are welded or brazed to the sheath for direct immersion into a process.

To order an assembly with an option 4 to 20 mA transmitter, select the assembly below and the transmitter from the back of this section.

The RTD assemblies are supplied with a 316 stainless steel sheath in several diameters. They are available in various tolerances and temperature ranges as noted below.
Fixed-Sheath RTD Assemblies with Explosion-Proof Connection Heads are provided with head mounting fittings that are welded or brazed to the sheath for direct immersion into a process.

To order an assembly with an option 4 to 20 mA transmitter, select the assembly below and the transmitter from the back of this section.

The RTD assemblies are supplied with a 316 stainless steel sheath in several diameters. They are available in various tolerances and temperature ranges as noted below.

Specifications

Sheath Material

  • 316 Stainless Steel

Head Material

  • Aluminum
  • 316L Stainless Steel

Element Connection

  • 2-Wire
  • 3-Wire
  • 4-Wire

Sheath Diameter

  • 1/8”, 3/8”, 3/16”, 1/4”

Process Connection

  • 1/8” NPT Compression Fitting
  • 1/4” NPT Compression Fitting
  • 1/2” NPT Compression Fitting

Head Mounting Fitting

  • 1/2” x 1/2” NPT
  • 1/2” NPT
  • 3/4” x 1/2” NPT
