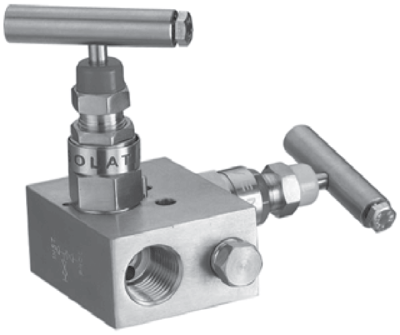

EM59 Gauge Pressure Manifold Valve

Brand: Hex Valve
Does not ship to VA, United States
The EM59 is a compact remote mounted two valve manifold that functions as a shutoff and vent valve for static pressure instrumentation.

Compared to traditional piping methods that use an arrangement of pipe nipples or tubing, Tees and hand valves, the EM59 Series provides an easy-to-install unit that performs the same function for less material and labor cost.

The EM59 also reduces the number of threaded connections, resulting in fewer potential leak points.
The EM59 is a compact remote mounted two valve manifold that functions as a shutoff and vent valve for static pressure instrumentation.

Compared to traditional piping methods that use an arrangement of pipe nipples or tubing, Tees and hand valves, the EM59 Series provides an easy-to-install unit that performs the same function for less material and labor cost.

The EM59 also reduces the number of threaded connections, resulting in fewer potential leak points.

Specifications

Enclosure, Body Material

  • 316 Stainless Steel - NACE
  • Hastelloy C
  • Monel

NACE & NIST

  • NACE

NPT Inlet

  • 1/2” NPT Female

NPT Outlet

  • 1/2” NPT Female

Packing Material

  • Graphite
  • Teflon

Valves

  • Two
