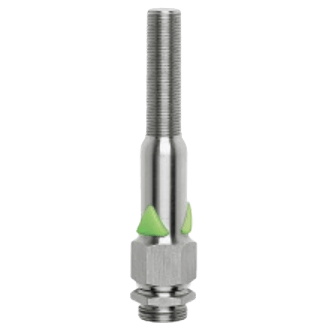

Model 7L Precision Sensing

Brand: TopWorx
Does not ship to OH, United States
Model 7L incorporates a Red or Green bright LED for local indication.

LEDs heightens safety and awareness to your operations, as well as provides visual monitoring with easy setup and calibration.

With all stainless steel construction, flexible AC/DC, NO/NC, and SPDT/DPDT contact configurations, superior corrosion resistance, and global certifications for all hazardous areas, 70 Series GO Switches outperform inductive proximity switches in the toughest applications.
Features
  • Single Pole Double Throw (SPDT) 0.25 A/120 Vac, 0.25 A/24 Vdc
  • AC/DC, NO/NC wiring flexibility
  • End sensing
  • 0.100" (2.5 mm) sensing distance (ferrous metal)
  • Palladium silver contacts
Model 7L incorporates a Red or Green bright LED for local indication.

LEDs heightens safety and awareness to your operations, as well as provides visual monitoring with easy setup and calibration.

With all stainless steel construction, flexible AC/DC, NO/NC, and SPDT/DPDT contact configurations, superior corrosion resistance, and global certifications for all hazardous areas, 70 Series GO Switches outperform inductive proximity switches in the toughest applications.
Features
  • Single Pole Double Throw (SPDT) 0.25 A/120 Vac, 0.25 A/24 Vdc
  • AC/DC, NO/NC wiring flexibility
  • End sensing
  • 0.100" (2.5 mm) sensing distance (ferrous metal)
  • Palladium silver contacts
Close

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Enclosure, Body Material

  • 316 Stainless Steel
