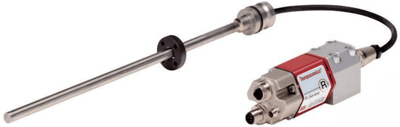

R-Series Rod Model RD4 Absolute Non-Contact Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Temposonics RD4 sensors were designed for installation into hydraulic cylinders, specifically for use in standard clevis head cylinders or any space limited cylinder application.

They consist of pressure proof stainless steel sensor rod with fitting or threaded flange, which protects the sensing element in which the measurement signal arises. It fits into the bored piston rod.

The external industrial housing (IP67) which accommodates the modular electronic interface with active signal conditioning. The sensor electronics is connected to the basic-sensor via side or bottom cable entry.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Non-contact sensing with highest durability
  • Direct output for position and velocity
  • Analog / SSI / CANbus / Profibus-DP / EtherCAT / Ethernet/IP / Powerlink / Profinet
  • Multi-position measurement: maximum 20 positions with 1 sensor
show more
Temposonics RD4 sensors were designed for installation into hydraulic cylinders, specifically for use in standard clevis head cylinders or any space limited cylinder application.

They consist of pressure proof stainless steel sensor rod with fitting or threaded flange, which protects the sensing element in which the measurement signal arises. It fits into the bored piston rod.

The external industrial housing (IP67) which accommodates the modular electronic interface with active signal conditioning. The sensor electronics is connected to the basic-sensor via side or bottom cable entry.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Non-contact sensing with highest durability
  • Direct output for position and velocity
  • Analog / SSI / CANbus / Profibus-DP / EtherCAT / Ethernet/IP / Powerlink / Profinet
  • Multi-position measurement: maximum 20 positions with 1 sensor
Close

Specifications

Brand

Approvals & Certifications

  • EMC: Electromagnetic Emission EN 61000-6-4, Electromagnetic Immunity EN 61000-6-2, EN 61000-4-2, 3, 4, 6, Level 3/4, Criterium A

Cable Length

  • PUR Cable: 9.8” to 23.6” (250 to 600 mm)
  • Single Wire with Flat Connector: 2.5 to 13.7” (65 to 350 mm)

Communication

  • CAN Bus
  • EtherCAT
  • EtherNet/IP
  • Powerlink
  • PROFIBUS DP
  • PROFINET
  • Synchronous Serial Interface (SSI)

Current

  • Current Drain: 100 mA Typical

Display

  • LED Diagnostic Display Beside Connector

Electrical Connectors

  • Standard Polyurethane (PUR) Cable

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Environmental Protection

  • Measuring Rod with Connecting Cable for Side Cable Entry: IP65
  • Measuring Rod with Single Wires & Flat Connector with Bottom Cable Entry: IP30
  • Sensor Electronics IP67

Humidity

  • 90 % Relative Humidity, Non-Condensing

Hysteresis

  • Analog: 0.01 % of Full Scale
  • Digital: < ± 10 µm

Length

  • Stroke Length: 0.98 to 196.9” (25 to 5,000 mm)

Linearity

  • < ± 0.02 % of Full Scale (Min. ± 50 µm)

Materials of Construction

  • Measuring Rod with Flange: AISI 304 Stainless Steel 1.4301
  • Sensor Electronics: Aluminum

Mounting

  • Flange Mount

Operating Pressure

  • psi: 10,000 (kPa: 68,950, bar: 700) Peak for Hydraulic Rod Ring
  • psi: 5,076 (kPa: 35,000, bar: 350)

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm) < 4 µm

Shock

  • 100 G (Single Shock IEC 60068-2-27)

Vibration

  • 10 G (10 to 2,000 Hz) IEC 60068-2-6

Voltage

  • Electric Strength: 500 Vdc (DC Ground to Machine Ground)
