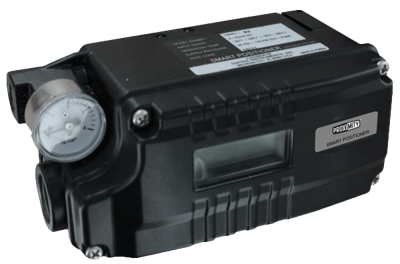

Series 195 Compact Linear Smart Positioner

Brand: Dwyer Instruments, LLC
Does not ship to OH, United States
Proximity Series 195 Compact Linear and Rotary Smart Positioners are a compact, high performance unit with a low price.

Series 195 models accurately control the valve stroke of linear motion valves, such as W.E. Anderson globe valves, according to an input signal of 4 to 20 mA from the controller. Its rugged, durable design makes it ideal for harsh environments.

The NEMA 4X (IP66) enclosure rating protects the highly efficient microprocessing unit inside the Smart Positioner. An analog feedback signal is outputted to stabilize any valve system, and easy to use functions such as auto calibration ensure the accuracy of the unit.

Low air consumption reduces operating cost, but does not sacrifice the performance of the Smart Positioner. The handheld size of this unit makes it easy to use with any size actuator, and can be used in applications where a larger positioner may not fit.

Series 195 Smart Positioners feature a LCD screen attached to the outer surface of the unit, allowing for an easy inspection of the positioner condition while in the field. Available with HART® communication.
Features
  • Auto calibration, PID control and alarm
  • LCD Display
Proximity Series 195 Compact Linear and Rotary Smart Positioners are a compact, high performance unit with a low price.

Series 195 models accurately control the valve stroke of linear motion valves, such as W.E. Anderson globe valves, according to an input signal of 4 to 20 mA from the controller. Its rugged, durable design makes it ideal for harsh environments.

The NEMA 4X (IP66) enclosure rating protects the highly efficient microprocessing unit inside the Smart Positioner. An analog feedback signal is outputted to stabilize any valve system, and easy to use functions such as auto calibration ensure the accuracy of the unit.

Low air consumption reduces operating cost, but does not sacrifice the performance of the Smart Positioner. The handheld size of this unit makes it easy to use with any size actuator, and can be used in applications where a larger positioner may not fit.

Series 195 Smart Positioners feature a LCD screen attached to the outer surface of the unit, allowing for an easy inspection of the positioner condition while in the field. Available with HART® communication.
Features
  • Auto calibration, PID control and alarm
  • LCD Display
Close
Close

Specifications

Brand

Air Consumption

  • 0.0004 to 0.32 scfm (0.01 to 9 LPM) at psig: 20 (kPa: 140, bar: 1.4) Supply - Flow Capacity

Communication

  • HART

Conduit Connection

  • 1/2” NPT

Display

  • LCD Display

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP66
  • NEMA 4X

Flow Capacity

  • 0.32 scfm (9 LPM) at psig: 20 (kPa: 140, bar: 1.4) Supply

Hysteresis

  • ± 0.05 % of Span

Input Signal

  • 4-20 mA DC

Linearization

  • ≤ ± 0.5 % of Full Scale

NPT Connection

  • 1/4” NPT Female
  • 1/8” NPT Female - Gage Connection

Repeatability

  • ± 0.3 % of Full Scale

Sensitivity

  • ± 0.2 % of Full Scale

Supply Pressure

  • psi: 35 to 116 (kPa: 240 to 900, bar: 2.4 to 9)

Temperature Range

  • -30° to 85° C (-22° to 185° F)
Close

Applications

  • Linear motion valves or rotary motion valves with single acting actuators
