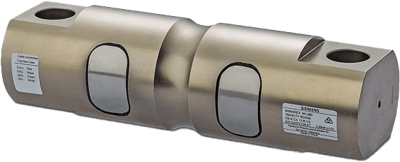

SIWAREX WL290 DB-S CA Double Shear Beam Load Cell
Does not ship to OH, United States
Description
The SIWAREX WL290 DB-S CA double shear beam load cell consists of nickel-plated special steel and is suitable for big platform and hopper scales.
A special mounting unit available for these load cells makes them particularly suitable for assembling scales in vehicles.
The SIWAREX WL290 DB-S CA may be mounted without any oscillating or elastically force transfer devices since lateral forces do not lead to oscillation or deflection of the weighing unit.
The measuring element of the load cell is a spring body made of special steel.
The load cell is suitable for harsh environments due to its galvanic coating with nickel and IP67 protection.
It is available in the accuracy class C3 according to OIML R60.
Features- Usable in harsh environments due to IP67
- Suitable for high-precision applications
Configure
Specifications
Specifications
Brand
Material
- Nickel-Plated Special Steel
Rated Load
- 2.3, 4.5, 9.1, 13.6, 18, 23, 27, 34, 45, 68, 91, 113 t
Supply Voltage
- Recommended: 5-12 Vdc
- Maximum 18 Vdc
Rated Temperature Range
- -10° to +40° C
Operating Temperature
- -35° to +65° C
Storage Temperature
- -40° to +80° C
Environmental Protection
- IP67
Cable Length
- 9 m
Accuracy Class
- C3
