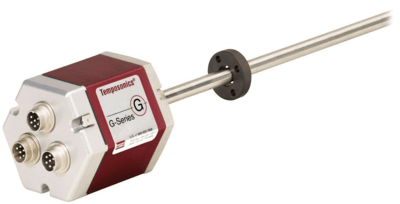

GT2/GT3 Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Robust, non-contact and wear-free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors.

The position magnet is mounted on the moving machine part and travels contact-lessly over the sensor rod with the built-in waveguide. Temposonics GT is a sensor with double or triple redundancy.

Two or three independent measuring systems are integrated in one sensor housing. In particular the sensor is suitable for enhanced safety applications.

The waveguide is installed in a pressure-resistant high-grade steel rod. The Temposonics GT sensor is suitable for linear position measurement in fluid cylinders on ships and floodgates.
show more
Robust, non-contact and wear-free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors.

The position magnet is mounted on the moving machine part and travels contact-lessly over the sensor rod with the built-in waveguide. Temposonics GT is a sensor with double or triple redundancy.

Two or three independent measuring systems are integrated in one sensor housing. In particular the sensor is suitable for enhanced safety applications.

The waveguide is installed in a pressure-resistant high-grade steel rod. The Temposonics GT sensor is suitable for linear position measurement in fluid cylinders on ships and floodgates.
Close

Specifications

Brand

Approvals & Certifications

  • ISO 9001 (DQS)
  • CE
  • DNV GL
  • EMC Test: Electromagnetic Emission EN 61000-6-4, Electromagnetic Immunity According to EN 61000-6-2

Cable Material

  • PUR

Consumption

  • Current Consumption: 100 mA Typical (Depedent on Stroke Length)

Electrical Connectors

  • Cable
  • M16 (6-Pin) Connector

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics: Aluminum

Environmental Protection

  • Cable Outlet: IP68 (For 2 M/6 Hr)
  • Ingress Protection: M16 Connector IP67 (If Mating Connectors are Correctly Fitted)

Humidity

  • 90 % Relative Humidity, Non-Condensing

Hysteresis

  • < 4 µm

Length

  • Stroke Length: 2 to 114” (50 to 2,900 mm)

Linearity

  • < ± 0.02 % of Full Scale (Min. ± 50 µm)

Load

  • Minimum Load Controller: > 5 kiloohms for Voltage Output
  • Minimum/Max.imum

Materials of Construction

  • Sensor Rod with Flange: AISI 304L Stainless Steel 1.4306

Mounting Position

  • Any Orientation

Operating Pressure

  • psi: 10,007 (kPa: 69,000, bar: 690) Peak
  • psi: 5,076 (kPa: 35,000, bar: 350)

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Output

  • 0-20 mA
  • -10-10 Vdc
  • 20-4 mA
  • 4-20 mA

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Shock

  • 100 G (Single Shock) IEC 60068-2-27

Vibration

  • 4 G (10 to 2,000 Hz) IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)
