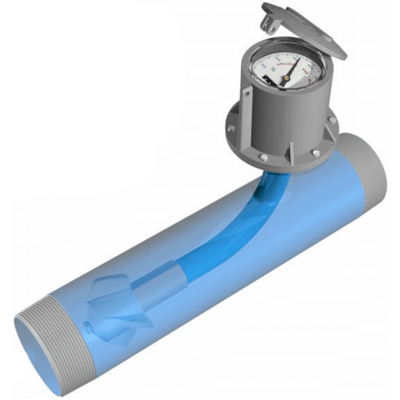

Model MT100 Threaded End Flowmeter

Brand: McCrometer, Inc
Does not ship to OH, United States
The Model MT100 is manufactured to comply with the applicable provisions of the American Water Works Association Standard No. C704-02 and latest revisions for propeller type flowmeters.

The threaded ends of the MT100 allow it to be directly coupled into an existing pipeline.

The carbon steel flow tube has a fusionbonded epoxy coating offering excellent corrosion protection.

As with all McCrometer propeller flowmeters, standard features include a magnetically coupled drive, instantaneous flowrate indicator and straight-reading, six-digit totalizer.
The Model MT100 is manufactured to comply with the applicable provisions of the American Water Works Association Standard No. C704-02 and latest revisions for propeller type flowmeters.

The threaded ends of the MT100 allow it to be directly coupled into an existing pipeline.

The carbon steel flow tube has a fusionbonded epoxy coating offering excellent corrosion protection.

As with all McCrometer propeller flowmeters, standard features include a magnetically coupled drive, instantaneous flowrate indicator and straight-reading, six-digit totalizer.
Close

Specifications

Brand

Bearing Material

  • Ball Bearing: 440C Stainless Steel

Enclosure, Body Material

  • Bearing: 304 Stainless Steel
  • Bearing: 316 Stainless Steel
  • Bearing: Brass
  • Flow Tube: Carbon Steel

Materials of Construction

  • Impeller: High-impact Plastic
  • Magnet: Alnico

Maximum System Pressure

  • psi: 150 (kPa: 1,000, bar: 10)

Shaft Material

  • 316 Stainless Steel

Size

  • Meter SIze: 2” to 6”
