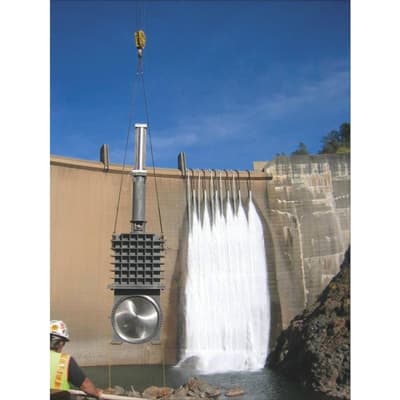

H-300-B Hydro Guard Gate Valve

Brand: Hilton
Does not ship to OH, United States
Fabricated Hydro Guard Valves are specially designed to provide shutoff or isolate a flow control valve for maintenance, such as Jet Flow Gates, Throttling Knife Gate Valves, or Fixed Cone Valves. Hydro Guard Gate Valves have a square bottom gate and are capable of closing under full flow in the event that the control valve cannot be closed.

They can be metal or resilient seated. They are normally bonneted, but can also be supplied bonnetless.
Fabricated Hydro Guard Valves are specially designed to provide shutoff or isolate a flow control valve for maintenance, such as Jet Flow Gates, Throttling Knife Gate Valves, or Fixed Cone Valves. Hydro Guard Gate Valves have a square bottom gate and are capable of closing under full flow in the event that the control valve cannot be closed.

They can be metal or resilient seated. They are normally bonneted, but can also be supplied bonnetless.

Specifications

Brand

Actuator Type

  • Handwheel, Chainwheel, Bevel Gear, Cylinder, Electric Motor

Materials

  • Solid Alloy or Alloy Wetted Parts Construction. Available in Any Weldable Alloy Including Stainless Steel, Hastelloy, Inconel, Monel or Titanium. Optional Abrasion & Corrosion Resistant Designs with Hard Facing Available.

Pressure Rating

  • Up to 400 psi (2800 kpa)

Size Range

  • Through 144” (3700 mm)
