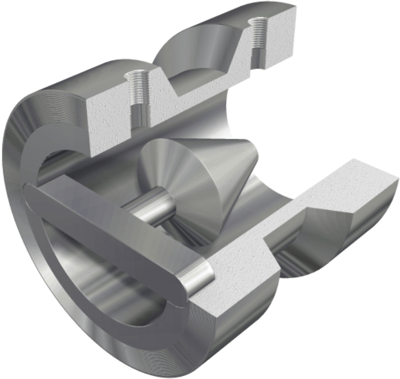

Model VH Wafer-Cone Flowmeter

Brand: McCrometer, Inc
Does not ship to OH, United States
The Wafer-Cone Flowmeter is a differential pressure type flow measurement device.

A cone is positioned in the center of the pipe to increase the velocity of the flowing fluid and create a differential pressure. This pressure difference can be measured and used to accurately interpret flowrate.

Wafer-Cone flowmeters can be ordered with either a flanged transmitter direct mount or threaded taps for remote mounting.
The Wafer-Cone Flowmeter is a differential pressure type flow measurement device.

A cone is positioned in the center of the pipe to increase the velocity of the flowing fluid and create a differential pressure. This pressure difference can be measured and used to accurately interpret flowrate.

Wafer-Cone flowmeters can be ordered with either a flanged transmitter direct mount or threaded taps for remote mounting.
Close

Specifications

Brand

BSP Connection

  • 1/4” BSPT Female
  • 1/8” BSPT Female

Enclosure, Body Material

  • 316 Stainless Steel
  • 321 Stainless Steel
  • CPVC
  • Duplex 2205 Stainless Steel
  • Hastelloy C-276
  • Inconel

NPT Connection

  • 1/4” NPT Female
  • 1/8” NPT Female

Size

  • 1” to 6” (25 to 150 mm)
