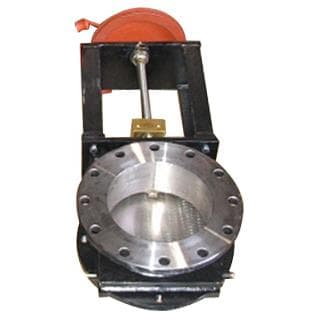

Coal Burner Isolation Knife Gate Valve

Brand: Hilton
Does not ship to VA, United States
Hilton Coal Burner Isolation Valves close off pulverized coal burner lines during maintenance shutdowns, providing increased safety by reducing the risk of fires and accidents.

Hilton Coal Burner Isolation Valves exceed the NFPA standard of 50 psi internal explosion pressure. A integral seat option as well as a removable hard-faced seat ring can be easily rotated or replaced, reducing time spent on maintenance.

To withstand abrasion or corrosion, Hilton Coal Burner Isolation Valves feature valve bodies and gates of carbon steel or 304 stainless steel. Other options include a stainless steel rising or non-rising stem.

A bronze yoke sleeve provides easy actuation and additional resistance to corrosion and wear.

Available in sizes from 6 to 24 inches (150 to 600 mm), Hilton Coal Burner Isolation Valves can be equipped with manual or powered actuators, including handwheel, chainwheel, pneumatic cylinder or electric motor.

 Flange options include ANSI 125/150, NFPA 85F 1988, or Babcock & Wilcox.
Hilton Coal Burner Isolation Valves close off pulverized coal burner lines during maintenance shutdowns, providing increased safety by reducing the risk of fires and accidents.

Hilton Coal Burner Isolation Valves exceed the NFPA standard of 50 psi internal explosion pressure. A integral seat option as well as a removable hard-faced seat ring can be easily rotated or replaced, reducing time spent on maintenance.

To withstand abrasion or corrosion, Hilton Coal Burner Isolation Valves feature valve bodies and gates of carbon steel or 304 stainless steel. Other options include a stainless steel rising or non-rising stem.

A bronze yoke sleeve provides easy actuation and additional resistance to corrosion and wear.

Available in sizes from 6 to 24 inches (150 to 600 mm), Hilton Coal Burner Isolation Valves can be equipped with manual or powered actuators, including handwheel, chainwheel, pneumatic cylinder or electric motor.

 Flange options include ANSI 125/150, NFPA 85F 1988, or Babcock & Wilcox.

Specifications

Brand

Valve Style

  • BIV Coal Burner Isolation Valve
