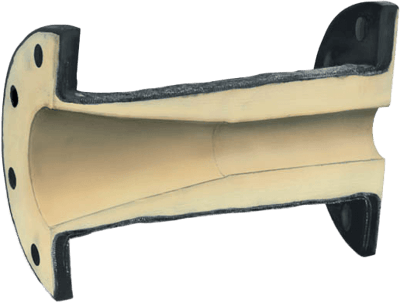

Cone Sleeve

Brand: Red Valve Company, Inc
Does not ship to Virginia, United States
Cone Sleeves, patented by Red Valve, are designed for control applications.

Cone Sleeves provide tighter control with a 20:1 turndown ratio and 0.89 pressure recovery factor, along with an extra thickness of elastomer on the downstream side of the cone to increase its service life.
Features
  • Full face-to-face integral elastomer molded flange
  • Manufactured to the highest standards
  • Superior service life
  • Standard, cone, double wall or high pressure cone sleeve trim available
  • Sleeves available in a wide variety of elastomers
  • Custom sizes available
Cone Sleeves, patented by Red Valve, are designed for control applications.

Cone Sleeves provide tighter control with a 20:1 turndown ratio and 0.89 pressure recovery factor, along with an extra thickness of elastomer on the downstream side of the cone to increase its service life.
Features
  • Full face-to-face integral elastomer molded flange
  • Manufactured to the highest standards
  • Superior service life
  • Standard, cone, double wall or high pressure cone sleeve trim available
  • Sleeves available in a wide variety of elastomers
  • Custom sizes available

Specifications

Materials of Construction

  • Pure Gum Rubber
  • Viton
  • Neoprene
  • Hypalon
  • EPDM
  • Chlorobutyl
  • Buna-N
  • Food Grade Materials
