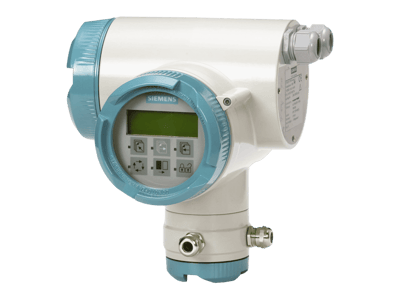

SITRANS FM MAG 6000 I / 6000 I Ex de

Brand: Siemens AG
Does not ship to OH, United States
The SITRANS FM MAG 6000 I and the SITRANS F M MAG 6000 I Ex de electromagnetic flow transmitters have an measuring accuracy of + 0.2% of the flow rate and are designed to meet the demands of the process industry.

Both versions are based on a microprocessor with a built-in alphanumeric display.
The SITRANS FM MAG 6000 I and the SITRANS F M MAG 6000 I Ex de electromagnetic flow transmitters have an measuring accuracy of + 0.2% of the flow rate and are designed to meet the demands of the process industry.

Both versions are based on a microprocessor with a built-in alphanumeric display.

Specifications

Accuracy

  • 0.2 % ± 1 mm/s

Input / Output

  • 1 current
  • 1 pulse/frequency
  • 1 Relay

Communication

  • HART
  • Modbus RTU
  • Profibus PA/DP
  • DeviceNet
  • FOUNDATION Fieldbus

Display

  • Background illumination with alphanumeric text, 3 x 20 characters

Enclosure

  • IP67 (NEMA 4X)

Power Supply

  • 24 V d.c.
  • 115-230 V a.c.
  • 18-30 V d.c.

Ambient Temperature

  • From -20° to 60° C (-4° to 140° F)

Approvals

  • CE
  • C-tick
  • FM Class 1, Div. 2
  • FM Class 1, Zone 2
  • CSA Class 1, Div. 2
  • CSA Class 1, Zone 2

Ex-approvals

  • IEC Ex de [ia] [ib] ia IIC T6 Gb Ex tDa 21 IP67
  • ATEX II 2(1)(2) GD EEx de [ia] ia [ib] IIC T6
