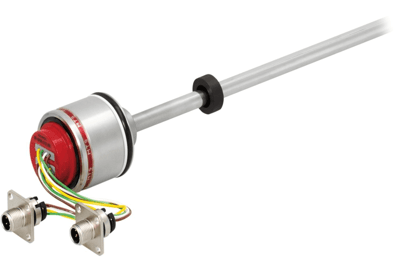

MH-Series MT Analog Redundant Absolute, Non-Contact Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
The robust Temposonics MT sensor’s stainless steel housing is designed for direct stroke measurement in compact standard hydraulic cylinders.

MT type sensors are ideal choices for a wide range of hydraulic cylinders. Magnetostrictive displacement sensors, high quality cylinders and precise control valves form ideal driving systems for technically demanding of mobile hydraulics.
show more
The robust Temposonics MT sensor’s stainless steel housing is designed for direct stroke measurement in compact standard hydraulic cylinders.

MT type sensors are ideal choices for a wide range of hydraulic cylinders. Magnetostrictive displacement sensors, high quality cylinders and precise control valves form ideal driving systems for technically demanding of mobile hydraulics.
Close

Specifications

Brand

Approvals & Certifications

  • EMC
  • ISO 9001 (DQS), ISO 14982 (Agricultural & Forestry Machines), 11452-2 (Radiated Immunity) (Increased Immunity Voltage Output 100 V/m), 11452-4 (Conducted Immunity), 7637-1/2 (Transient Impulses)
  • Pressure Impulse Test DIN EN ISO 19879

Electrical Connectors

  • Connector System 2 x M12 x 1 with O-Ring 7 x 1.35 mm NBR 70

Electrical Protection

  • Overvoltage Protection: 36 Vdc (GND - Vdc)
  • Polarity Protection: up to -36 Vdc (GND - Vdc)

Environmental Protection

  • IP69K
  • Sensor Housing: IP67, EN 60529
  • Water-Proof

Flange Material

  • Brass Nickel-Plated

Humidity

  • Dew Point: 90 % Relative Humidity, Non-Condensing EN 60068-2-30

Hysteresis

  • ± 0.1 mm

Linearity

  • 2,005 to 2,500 mm: ± 0.08 mm
  • 255 to 2,000 mm: ± 0.04 % of Full Scale
  • 50 to 250 mm: ± 0.1 mm

Load

  • ≤ 250 ohms (12 Vdc) Output
  • ≤ 500 ohms (24 Vdc) Output
  • ≥ 10 kiloohms mA Output

Materials of Construction

  • Sensor Rod: AISI 304L Stainless Steel 1.4306 (Ø 10 mm)

Measuring Range

  • 1.96 to 98.4” (50 to 2,500 mm)

Mounting Position

  • Any Orientation

O-Ring Material

  • NBR
  • PTFE

Operating Pressure

  • Ø 10 mm Sensor Rod - psi: 5,076 (kPa: 35,000, bar: 350) Nominal
  • Ø 10 mm Sensor Rod - psi: 6,527 (kPa: 45,000, bar: 450), Max.

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Output

  • 0.25 to 4.75 Vdc
  • 0.5 - 4.5 Vdc
  • 20-4 mA
  • 4.5-0.5 Vdc
  • 4.75-0.25 Vdc
  • 4-20 mA

Power

  • Power Drain: < 1 W

Principle of Operation

  • Magnetostrictive Principle

Process Temperature

  • -30° to 85° C (-22° to 185° F)

Resolution

  • Typical ± 0.1 mm

Shock

  • IEC 68-2-27, 100 G, 6 milliseconds Single Hit
  • IEC 68-2-27, 50 G, 11 milliseconds at 1,000 Shocks Per Axis

Storage Temperature

  • -40° to 105° C (-40° to 221° F)

Supply Voltage

  • 12-24 Vdc (Tolerance Range 8-32 Vdc)

Tolerance

  • Setpoint Tolerance: ≤ 1 mm

Vibration

  • IEC 68-2-6 Ø 10 mm Sensor Rod: 15 G R.m.s (10 to 2,000 Hz)

Voltage

  • Electric Strength: 500 Vdc (DC Ground to Machine Ground)
Close

Applications

  • Mobile
