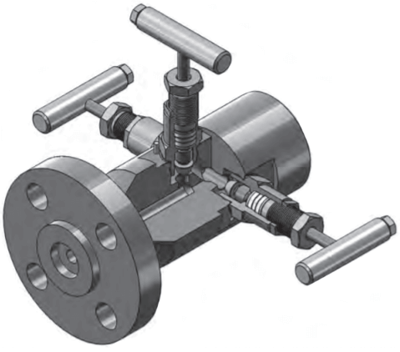

Hexblok Globe & Plug Style Valve

Brand: Hex Valve
Does not ship to OH, United States
Features
  • Large, 3/8" (10 mm) standard orifice and porting, resulting in a lower probability of plugging.
  • OBS (Outer Bonnet Support) design provides the security of OS&Y bonnets with the packing maintenance ease of a screwed bonnet.
  • Optional "Zerk" style high pressure grease fitting option ensures long term stem/valve life, and easier stem operation. Internal porting deploys grease where it is needed most: above the packing and into the stem threads, for lubrication and environmental protection.
  • Large, robust bonnet and NRT stem design means higher probability of long life, and less break risk than competitive designs.
  • Hex was the first in the industry to utilize Non-Rotating Stem Tip (NRT) technology. When the stem tip contacts the seat, it stops rotating, preventing the cross scoring and eventual leaks that can occur with ball type stems.
  • 4 rings Teflon Chevron style packing, or multi-ring set of grafoil surrounded by braided graphite standard.
  • API 607 5th Edition (fire test) Standard (Graphite-packed and hard seat models only).
  • Large variety of standard and optional forged or bar materials and outlet options, means you can select the style and material you need immediately from catalog, instead of having to contact the factory.
  • Special built-to-order design inquiries welcome.
Features
  • Large, 3/8" (10 mm) standard orifice and porting, resulting in a lower probability of plugging.
  • OBS (Outer Bonnet Support) design provides the security of OS&Y bonnets with the packing maintenance ease of a screwed bonnet.
  • Optional "Zerk" style high pressure grease fitting option ensures long term stem/valve life, and easier stem operation. Internal porting deploys grease where it is needed most: above the packing and into the stem threads, for lubrication and environmental protection.
  • Large, robust bonnet and NRT stem design means higher probability of long life, and less break risk than competitive designs.
  • Hex was the first in the industry to utilize Non-Rotating Stem Tip (NRT) technology. When the stem tip contacts the seat, it stops rotating, preventing the cross scoring and eventual leaks that can occur with ball type stems.
  • 4 rings Teflon Chevron style packing, or multi-ring set of grafoil surrounded by braided graphite standard.
  • API 607 5th Edition (fire test) Standard (Graphite-packed and hard seat models only).
  • Large variety of standard and optional forged or bar materials and outlet options, means you can select the style and material you need immediately from catalog, instead of having to contact the factory.
  • Special built-to-order design inquiries welcome.
Close

Specifications

Brand

Enclosure, Body Material

  • 316 Stainless Steel (Forged)
  • 316L Stainless Steel - A182F, Forged
  • A105 Carbon Steel
  • Alloy 20 or Incoloy
  • Duplex A182 F51 Stainless Steel (Forged)
  • Hastelloy C
  • Incoloy 825
  • Inconel 625
  • Low Temperature Carbon Steel A350 LF2 (Forged)
  • Monel 400 (Forged)
  • Super Duplex A182 F55 Stainless Steel (Forged)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 1500#
  • 1-1/2” (DN 40) - 2500#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - 900#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 1500#
  • 1” (DN 25) - 2500#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - 900#

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 1500#
  • 1/2” (DN 15) - 2500#
  • 1/2” (DN 15) - 300#
  • 1/2” (DN 15) - 600#
  • 1/2” (DN 15) - 900#

Flange Size - 1/4” (DN 6)

  • 1/4” (DN 6) - 150#
  • 1/4” (DN 6) - 1500#
  • 1/4” (DN 6) - 2500#
  • 1/4” (DN 6) - 300#
  • 1/4” (DN 6) - 600#
  • 1/4” (DN 6) - 900#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 1500#
  • 2” (DN 50) - 2500#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - 900#

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 1500#
  • 3/4” (DN 20) - 2500#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - 600#
  • 3/4” (DN 20) - 900#

Flange Size - 3/8” (DN 10)

  • 3/8” (DN 10) - 150#
  • 3/8” (DN 10) - 1500#
  • 3/8” (DN 10) - 2500#
  • 3/8” (DN 10) - 300#
  • 3/8” (DN 10) - 600#
  • 3/8” (DN 10) - 900#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

NACE & NIST

  • NACE

NPT Inlet

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male
  • 2” NPT Female
  • 2” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

NPT Outlet

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male
  • 2” NPT Female
  • 2” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

Packing Material

  • Graphite
  • Teflon

Seat / Seal Material

  • Seat: Carbon-Filled PEEK

Welded Inlet

  • 1” Socket Weld End Female
  • 1/2” Socket Weld End Female
  • 1/4” Socket Weld End Female
  • 1-1/2” Socket Weld End Female
  • 2” Socket Weld End Female
  • 3/4” Socket Weld End Female
  • 3/8” Socket Weld End Female

Welded Outlet

  • 1” Socket Weld End Female
  • 1/2” Socket Weld End Female
  • 1/4” Socket Weld End Female
  • 1-1/2” Socket Weld End Female
  • 2” Socket Weld End Female
  • 3/4” Socket Weld End Female
  • 3/8” Socket Weld End Female
Close
