Description

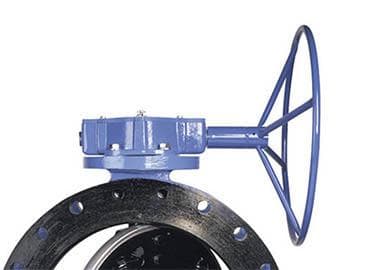

M-Series Actuators are designed for use on smaller DeZURIK AWWA Butterfly Valves.
The M-Series Actuator meets the requirements of AWWA C504 standards.
The fully enclosed scotch yoke mechanism allows the M-Series Actuator to provide a torque curve that matches the torque requirements of the valve.
The thread system of the traveling nut is self-locking, maintaining disc position under varying flow conditions.
Specifications
Specifications
Brand
Input Torque Capability
- As Required by AWWA C504, an Input Torque Capability of 300 Foot Pounds Against the Open & Closed Position Stops is Standard. A 450-foot-Pound Capability is Available as an Option.
Materials
- Hand Wheel, Chain Wheel or 2” (50 mm) Square Nut Options.
Materials of Construction
- Cast-Iron Housing in Buriable or Weatherproof Construction. One-Piece Yoke Machined from a Ductile Iron Casting. Carbon Steel Input Shaft & Aluminum Bronze Yoke Bearing.
Output Torque
- 550 Foot Pounds.
Size Range
- 3” - 24” (80 - 600 mm)
