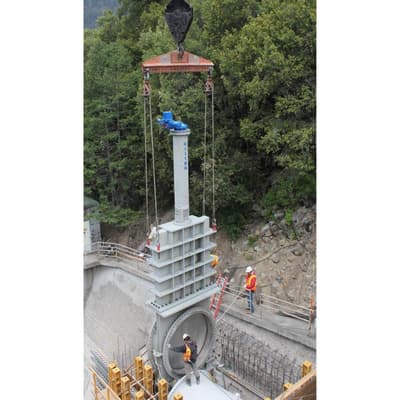

H-340-B Throttling Gate Valve

Brand: Hilton
Does not ship to VA, United States
Fabricated Bonneted Throttling Knife Gate Valves are an economical alternative to the Jet Flow Gate used when pressures are typically under 100 psi.

The valve is used primarily for free water discharge and flow control on dams and reservoirs.

The valve includes some of the features of the Jet Flow Gate with a unique design that permits them to open smoothly in free discharge conditions, where there is pressure on the upstream side and zero pressure on the downstream side.

UHMW guides are located on the downstream side of the gate to provide full support throughout the entire length of travel. Downstream side of the valve is larger than the upstream side which serves to resists damage from cavitation and vibration.

Square bottom gate design for gross flow control.
Fabricated Bonneted Throttling Knife Gate Valves are an economical alternative to the Jet Flow Gate used when pressures are typically under 100 psi.

The valve is used primarily for free water discharge and flow control on dams and reservoirs.

The valve includes some of the features of the Jet Flow Gate with a unique design that permits them to open smoothly in free discharge conditions, where there is pressure on the upstream side and zero pressure on the downstream side.

UHMW guides are located on the downstream side of the gate to provide full support throughout the entire length of travel. Downstream side of the valve is larger than the upstream side which serves to resists damage from cavitation and vibration.

Square bottom gate design for gross flow control.

Specifications

Brand

Materials

  • Valves are available in Solid or Wetted Parts Construction in Any Weldable Alloy. Typical Construction is Carbon Steel Body with Stainless Steel Wetted Parts.

Pressure Rating

  • Up to 100 psi

Seating

  • Metal or Resilient

Size Range

  • Through 144”
