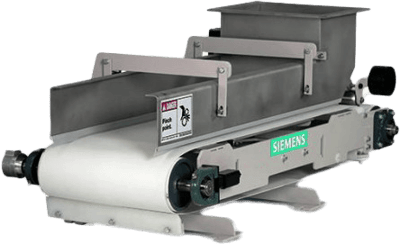

SITRANS WW100 High-Accuracy Low-Capacity Weighfeeder

Brand: Siemens AG
Does not ship to OH, United States
SITRANS WW100 is one of the most accurate in-motion weighing systems on the market. It is specially designed for high accuracy on light loading processes. The design eliminates material buildup to ensure accurate, reliable measurement.

The unique long length platform weigh bridge mounts directly to a corrosion-resistant platform load cell. An adjustable mechanical shear gate profiles the material and fixes the correct material bed depth for a given material particle size. The belt speed can be automatically adjusted to attain the correct feed rate. Standard components include an anti-static food grade belt, gravity tensioned roller, tail pulley driven belt for maximum weighing accuracy, belt tracking rollers, belt scraper and plow for self-cleaning.
Features
  • High accuracy
  • High turn down ratio; 100 to 10% of capacity
  • Corrosion resistant components
  • Fast and easy belt removal for replacement or cleaning
  • Simple installation, easy to clean and maintain
  • Available with gear or servomotor
SITRANS WW100 is one of the most accurate in-motion weighing systems on the market. It is specially designed for high accuracy on light loading processes. The design eliminates material buildup to ensure accurate, reliable measurement.

The unique long length platform weigh bridge mounts directly to a corrosion-resistant platform load cell. An adjustable mechanical shear gate profiles the material and fixes the correct material bed depth for a given material particle size. The belt speed can be automatically adjusted to attain the correct feed rate. Standard components include an anti-static food grade belt, gravity tensioned roller, tail pulley driven belt for maximum weighing accuracy, belt tracking rollers, belt scraper and plow for self-cleaning.
Features
  • High accuracy
  • High turn down ratio; 100 to 10% of capacity
  • Corrosion resistant components
  • Fast and easy belt removal for replacement or cleaning
  • Simple installation, easy to clean and maintain
  • Available with gear or servomotor
Close
Close

Specifications

Brand

Accuracy

  • ± 0.25 % to 0.5 %

Repeatability

  • ± 0.1 %

Specified Range

  • 10 % to 100 % Based on Speed

Design Rate Range

  • 45 kg/h to 18 t/h (100 lb/h to 20 STPH)

Maximum Volumetric Flow

  • 25 m³/h (880 ft³/h)

Operating Temperature

  • Medium: -10° to +55° C (10° to 131° F)
  • Load Cell: -40° to +60° C (-40° to 149° F)

Material of Construction

  • Stainless Steel
  • Load Cell: 17-4 PH (1.4568) Stainless Steel
  • Framework: Precision Machined, Stainless [304 (1.4301) or 316L (1.4404)] or Mild Steel

Environmental Protection

  • IP68
  • IP64
  • IP66

Certifications & Approvals

  • FDA
  • Declaration of Incorporation of Partly Completed Mmachinery Acc. Directive 2006/42/EC
Close

Applications

  • Control and Monitor Feed Rates and Blending in Bulk Chemicals, Tobacco, Food, and Water Treatment.
